-P4 10.1inch Development Board IPS LCD Module HMI Screen Display Touch Panel JC8012P4A1 Camera WiFi Bluetooth

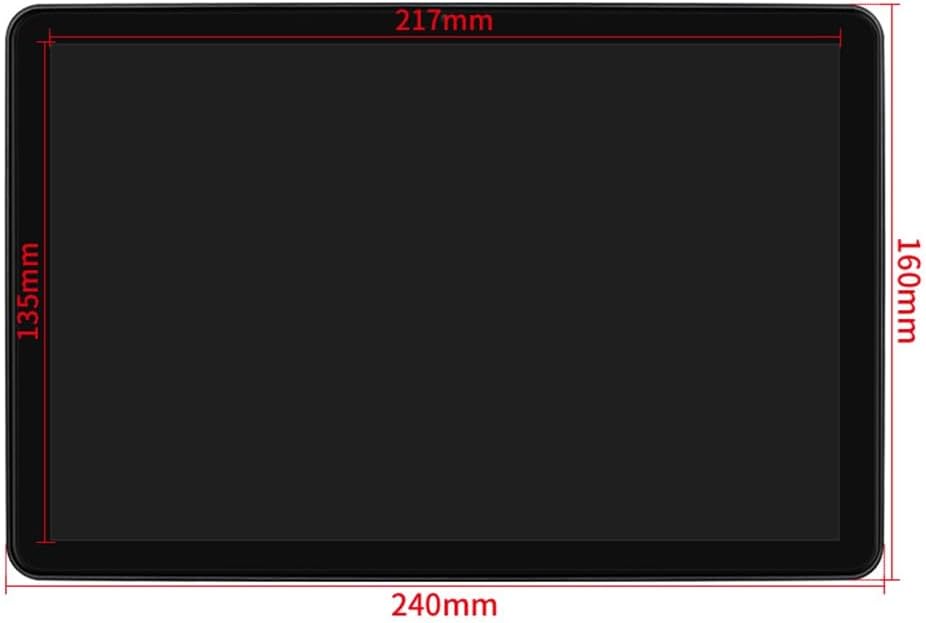

TKOWTB This product is a multimedia development board based on -P4 with a 10.1-inch 800*1280 display. It is equipped with -C6 and supports WiFi 6 and Bluetooth 5 wireless connections. We provide examples of using ESP-IDF and for ardu-ino to facilitate customers' rapid secondary development. It provides a rich human-computer interaction interface, with a MIPI 1080P camera, TF card circuit, RTC clock, microphone, and multiple IOs reserved for customersProduct ParametersDisplay Color: 16.7M ColorSKU: Capacitive Touch Panel: JC8012P4A1CDisplay Size: 10.1 InchDispolay Type: TFTResolution: 800x1280(Pixel)Module Size: 160.00x 240.00(mm)View Angle: IPS Full AngleOperating Temperature: -20℃-70℃Storage Temperature: -30℃-80℃Operating Voltage: 5.0VPower Consumption: About 800mA(The product appearance and printed words depending on the batch, but this does not affect use)Color:As ShownMaterial:PCB+LCDPackage Contents:1 * 10.1inch Development Board(without lithium battery and speaker)Only the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

• The Module includes LCD display screen, backlight control circuit, touch screen control circuit
• Reserve the TF card interface, Up to more IO available, this module supports development in for IDE, ESP IDE, for Micropython and for LVGL
• JC8012P4A1 use -P4NRW32 & -C6-MINI-1U-N4 as the controller, the main controller(-P4NRW32) is a dual-core MCU, -C6-MINI-1U-N4 integrated WI-FI and Bluetooth functions, the main frequency can reach 400MHz, 768KB_HP 16KB_LP , 128KB ROM, 32M PSRAM, Flash size is 16MB, 10.1 inch display resolution is 800*1280, with Capacitive Touch Panel
• Advanced Connectivity: Equipped with WiFi and Bluetooth capabilities, this module allows for easy integration with other devices and online platforms, enhancing its functionality in IoT projects
